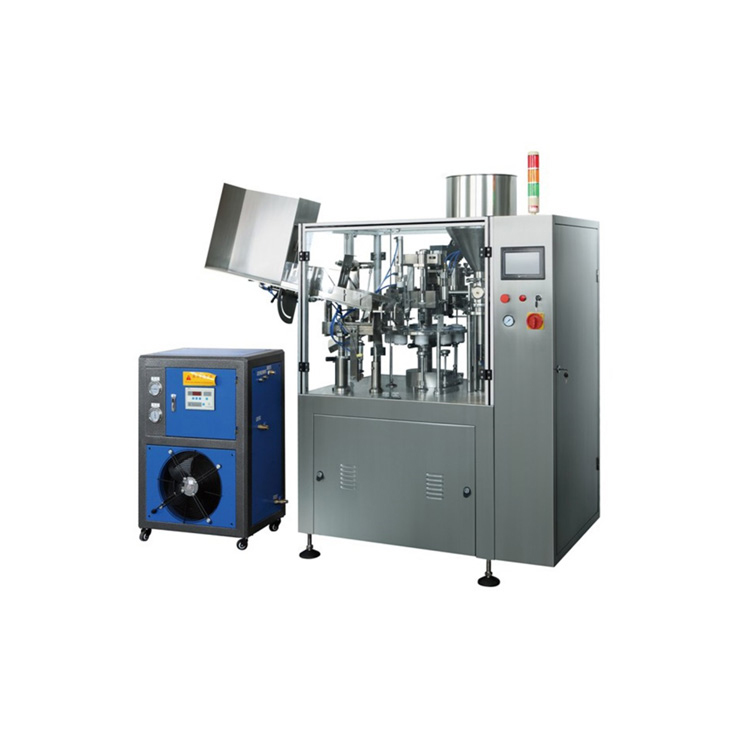

Danrel Ultrasonic Tube Filling Sealing Machine
The process of tube sealing machine eliminates the use of glue and allows the thermoplastic parts to bond to itself. Ultrasonic sealing with the proper time setting and pressure is the fastest most reliable method for a variety of tube material sealing.
* Eliminate use of consumable material
* Produce airtight and watertight seams
* Increase production time

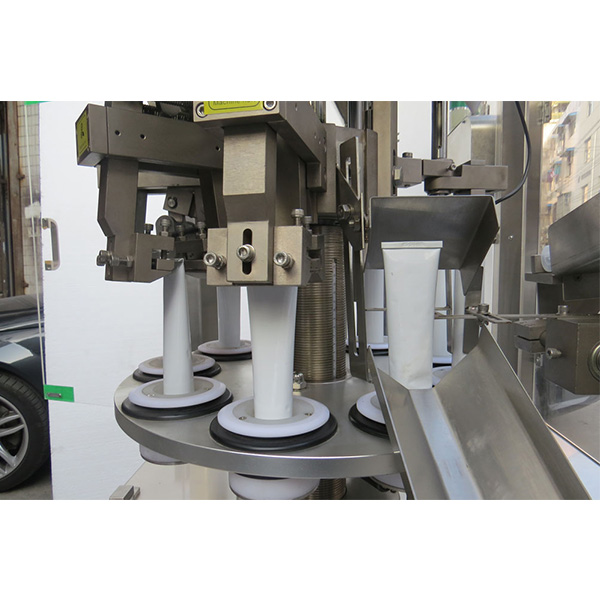

1. Automatic rotary table with 10 tube holders, servo motor control
2. Adopt digital ultrasonic circuit, stable output and performance
3. Machine body of stainless steel, meet with GMP requirement
4. PLC/HMI control, simple operation and parameters setting
5. Machine with mark searching function, more precise sealing
6. Main parts adopt imported components, Japan and Taiwan
7. Suitable for plastic tubes, composite tubes, PE tubes.
8. Compared with traditional type heat sealing method, the ultrasonic tube sealing has the following
* Fast Sealing, save time
* Sealing is nice looking, no plastic melting overflow
* Lower power consumption, energy saving
1. Tube Filling
2. Mark Searching
3. Ultrasonic Sealing
4. Cutting (trimming)
5. Batch No Coding
6. PLC/HMI control, English/French/Espanol interface as request
7. 10 tube stations, 20-25 tubes/min
8. Stainless steel body, Meet with GMP requirement
9. Meet with CE requirement.
|Fonte de alimentación||AC 110/220V, 50/60Hz|
|Delay Time||0.01-2.99 S|
|Presión de traballo||0.5-0.7 MPa|
|Tube Diameter Range||10-50 MM|
|Tube Height Range||50-250 MM|
|Rancho de recheo||A: 5-60 ml B: 10-120 ml C: 25-250 ml D: 50-500 ml|
|Working Station Number||10|
|Volume de tolva||30 L|
|Dimensión de embalaxe||L*W*H 1310*1050*1760 mm|
|Gross Weight||440 KGS|
It's applicable to toothpaste, cosmetic, pharmaceutical, food, industry product and other soft tube sealing. Extensional organization of the machine is made of aluminium alloy and stainless steel.
Máquina de recheo
Multiple purpose filling machine can fill cream, gel, liquid, ointment, etc. Every part can be removed for easy cleaning.
Boquilla de recheo
Anti-drip filling nozzle for liquid, cream, gel, ointment, etc
Plc Touch Screen
Easy operation touch screen for quick setting.
Using high sensitivity Japan-Imported Panasonic infrared positioning system, plastic tube will be turning to right side according to the mark on the tube
Chrome-plating ultrasonic horn, more durable. Sealing and printing at the same time.
O noso servizo
1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
