Máquina de etiquetado de recheo e recheo de aceite para botellas pequenas

oil 5 liter bottle filling machine, small bottle cooking oil filling and capping labeling machine

Filling samples

This edible oil filling machine is sutable for oil filling. It is also widely used for viscous liquids such as jam, syrup, tomato sauce, honey etc.

Máquina de etiquetado de recheo e recheo de aceite para botellas pequenas

The máquina de recheo de pistóns can be connected with filling line,and mainly suitable for viscosity liquids. It adopts integrated design, using high quality electrical components such as PLC, a photoelectric switch, touch screen and high quality stainless steel, plastic parts. This machine is good quality. System operation, convenient adjustment, friendly man-machine interface, the use of advanced automatic control technology, in order to achieve a high precision liquid filling.

A continuación hai vantaxes:

a. Large filling scope from 100-5000ml. if you need volume larger than 5L,we also could make it.

b. with high filling precision of ±0.5 ml

c. The filling volume is regulated by the actual measurement,and it is digital PLCdisplay control.

d. Simple to operate,easy to maintain with low cost.

e. The fillers has the no bottle no filling system. The filler has drop control system which avoids any oil leakage out.

f. Stable lifting of ball screw post.

g. O dispositivo de colocación da boca da botella non asegura ningunha desviación da válvula de recheo.

h. Liquid in or out automatically, without manual intervention.

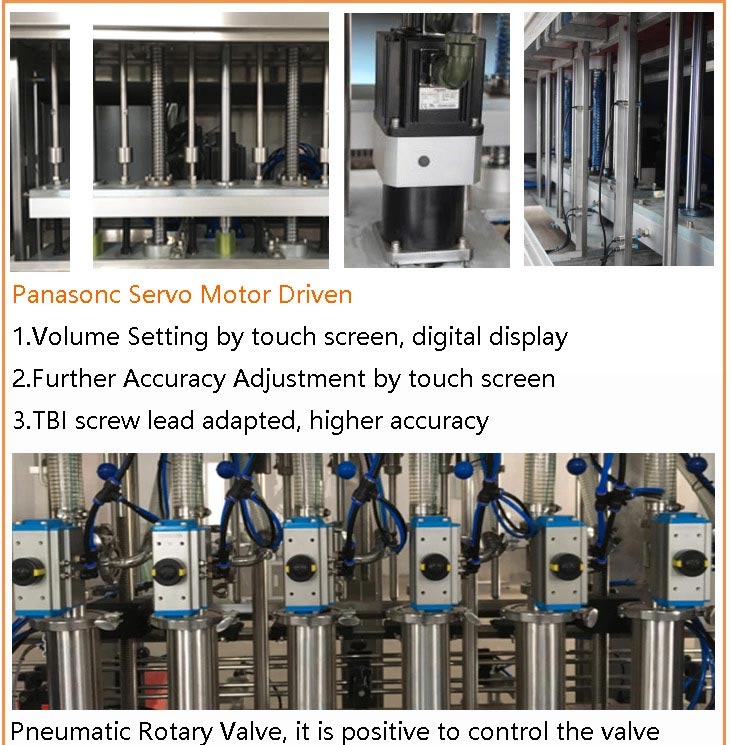

Detalles

Parámetro do produto

Filling Range: 100-5000ml
Output: 1200 bottles per hour
Measurement Precision: 99.8%
Applicable Bottle Dia.: 40-100mm
Applicable Bottle Height.: 70-300mm
Air Pressure: 0.6-0.8Mpa
Potencia: 2KW
Electricity: AC380V,three phase
Dimension: 1800x1300x2150mm

Os nosos Servizos

Durante a produción: cooperaremos co comprador e actualizaremos o proceso de fabricación e o estado dos compradores e convidaremos a que o comprador acuda a probar a máquina cando a mercadoría acabe na nosa fábrica, se o comprador pensa que está ben, imos organizar o envío; ou podemos tomar o vídeo de proba e enviar ao comprador, o propósito é que o comprador poida inspeccionar a máquina.

Despois das vendas: Enviaremos técnicos no exterior, posta en servizo e formación de operadores; O noso período de garantía é de 12 meses, neste período, ofrecemos pezas de balde para o comprador, así como o soporte técnico necesario. Fóra do período de garantía, ofrecemos asistencia técnica gratuíta e o prezo de custo das pezas de reposición.

O servizo de mostra:

1. Podemos enviarlle o vídeo da máquina en funcionamento.

2. You are welcome to come to visit our company,and see the machine running in our factory, we can pick you up from the station near our city.

3. If we get the permission of the customer who has brought the machines from us, we can tell you our customers' contact imformation, you can go to vist their factory.

Servizo personalizado

1. We can design the machines according your requirements(materil, power, filling type, the kinds of the bottles, and so on), at the same time we will give you our professional suggestion, as you know, we have been in this industry for many years.

2. We can offer free technical support and consultation such as design your factory, draw the factory layout and so on.
