Máquina embotelladora de envasado de mel de bote barato

Cheap Filling Packing Jar Honey Bottling Machine

1. Automatic honey filling machine

NP-VF automatic honey filling machine is specially design for filling viscous honey into glass jars and pet bottles, it is also namely honey filler, honey jar packing machine. It is an ideal choice for honey bee factory.

2. Different types of NPACK automatic honey filling machine

There are many models and types of honey filling machine base on different capacity, the filling nozzles number are from one head to 16 heads, and the filling volume is from 5g to 20g, and 100g to 1000g and even 1000g to 5KG.

Máquina embotelladora de envasado de mel de bote barato

3. Main structure of honey filler

-20L to 200L Top hopper for option, double Jacket hopper with heating and mixing system for option,

-Main body of machine made by 304SS

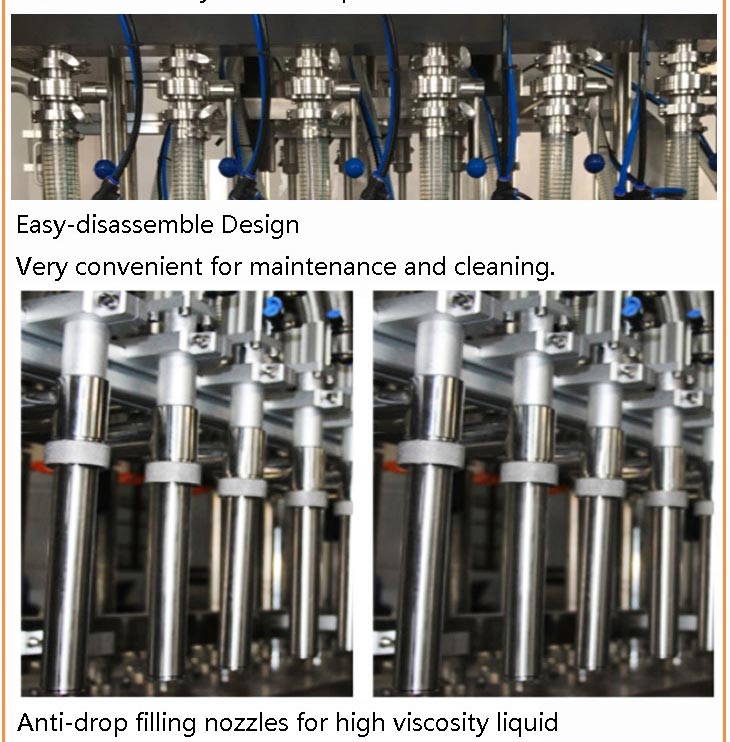

-Filling nozzzles, filling nozzles are specially design for shut off and silk cut for honey

-Filling nozzles moving up and down by air cylinder, and servo motor moving up and down for option

-PLC control system, and HMI operation

-Specially made horse and valve for honey, with CIP system connect horse.

4. competitive Advantage of automatic honey filler

There are many advantages of the automatic honey filling machine

-PLC control, operation on touch screen.

-Panasonic servo motor driven , automatic adjust the Filling size on HMI, eg. Users wantTo fill 500g honey,

users just input the number 500, then the machine will automatic adjust

-it is volumetric by piston, high filling accuracy

-With top Double jacketed heating and mixing tanks which will prevent the honey crystallization afterstop working one day or more days. Also piston and hose can be heating.

-The automatic honey filling machine also can has the function by CIP system which will connect the users CIP system

-The horse of the honey filler are specially made according to the honey nature, no dead corner, food grade

-The soft tubes or pipes on the honey filler are adapt world brand Toyox from japan

-Specially made rotary valve for viscous honey transfer

Máquina embotelladora de envasado de mel de bote barato

5. Main technical

Boquillas de recheo1-16Nugas
Capacidade de produción800 -5000Botas por hora
Volume de recheo100-500ml, 100ml tp 1000ml
Potencia2000W, 220VAC
Precisión± 0,1%
ConducidoPanasonic Servo Motor
InterfacePantalla táctil de Schneider

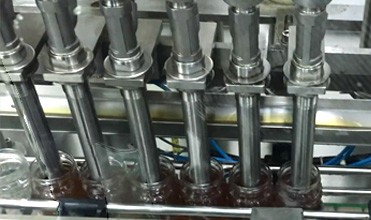

Honey

6. Automatic honey Filling Machine Main features

a) Products to Fill:
1) hot fill ( 35 ~ 40℃) , cold filling normal temperature
2) Specific Gravity: 1.1 ~1.4 gr/cm3
3) Spreading Chocolate past • Honey • Spreading Cheese paste, Molasses.
b) Bottle type:
1) PET bottle • Quadrant Cross section • Volume 250 ml. • neck 32 mm.
2) Glass Jars & PE, PET Jars • Cylindrical Cross section • Volume 200 ~ 350 ml.
3) neck 45 mm.
c) Filling tolerances: +/- max 0.5%
honey Filling Machine basic composition
1.1 Bottles & Jars cleaning by air.
1.2 Automatic bottles feeding and holders (for plastic bottles if need)
1.3 No dripping.
1.4 Output 20 ~ 100 bpm.
1.5 No bottle No fill
1.3 Control panel with PLC touch screen. Malty filling programs saving.
1.4 Double jacketed Hopper with:
• 180 liters volume, • Level Detector. • Electric heaters.
• Product’s temperature detector and control • Stirrer
1.5 Easy dissembling the filling system and nozzles for cleaning.
1.6 Machine’s body of SS 304, all parts in contact with product is SSL 316.

Our Machine VS Other Suppliers

ElementoOur machineOther suppliers
Top TankDouble-jacket electrict heating tankNO
PistónWith hot water cycling heating sytemNO
Connect tube and hoseWith hot water sycling heating systemNO
Boquillas de recheoShut off and anti-silk filling nozzlesNO
CIP sytemOur machine can connect CIP systemNO

Os nosos Servizos

Instalación e depuración
- Enviaremos enxeñeiros para realizar a instalación e depuración do equipo no lugar do comprador se o solicita.
- O custo dos billetes de avión internacionais por dobre forma, aloxamentos, comida e transportes médicos será pagado polo comprador polos enxeñeiros.
- O prazo normal de depuración é de 3-7 días, e o comprador debería pagar US $ 80 / día por enxeñeiro.
-- If customer do not require above, then customer need to be train in our factory. Before installation, the customer need read the operation manual firstly. Meanwhile, w
e will offer an operation video to customer.

Adestramento
- Ofrecemos sistema de formación de máquinas; o cliente pode escoller adestramento na nosa fábrica ou no taller do cliente. Os días normais de adestramento son de 1-2 días.

Garantía
- A máquina vendida será garantida nun ano.
- No ano de garantía, os recambios rotos por cuestións de calidade do provedor serán subministrados de xeito gratuíto para o cliente, e o cliente deberá pagar o custo da mercancía se o peso da parcela supera os 500 gramos.
- As pezas de reposición fáciles de usar non están nas condicións de garantía, como aneis O, cintos que se subministrarán coa máquina durante un ano.
